Features and functions of the GHEH heating element
– Weekly/daily programming
– Modes: Weekly, Comfort, ECO
– Smooth adjustment of working temperature in the range of 10°C to 65°C
– Additional functions: Turbo (1/2/3 hours), Timer (1-9 hours), and Antifreeze (protection against installation freezing)
– External ambient temperature sensor for precise control

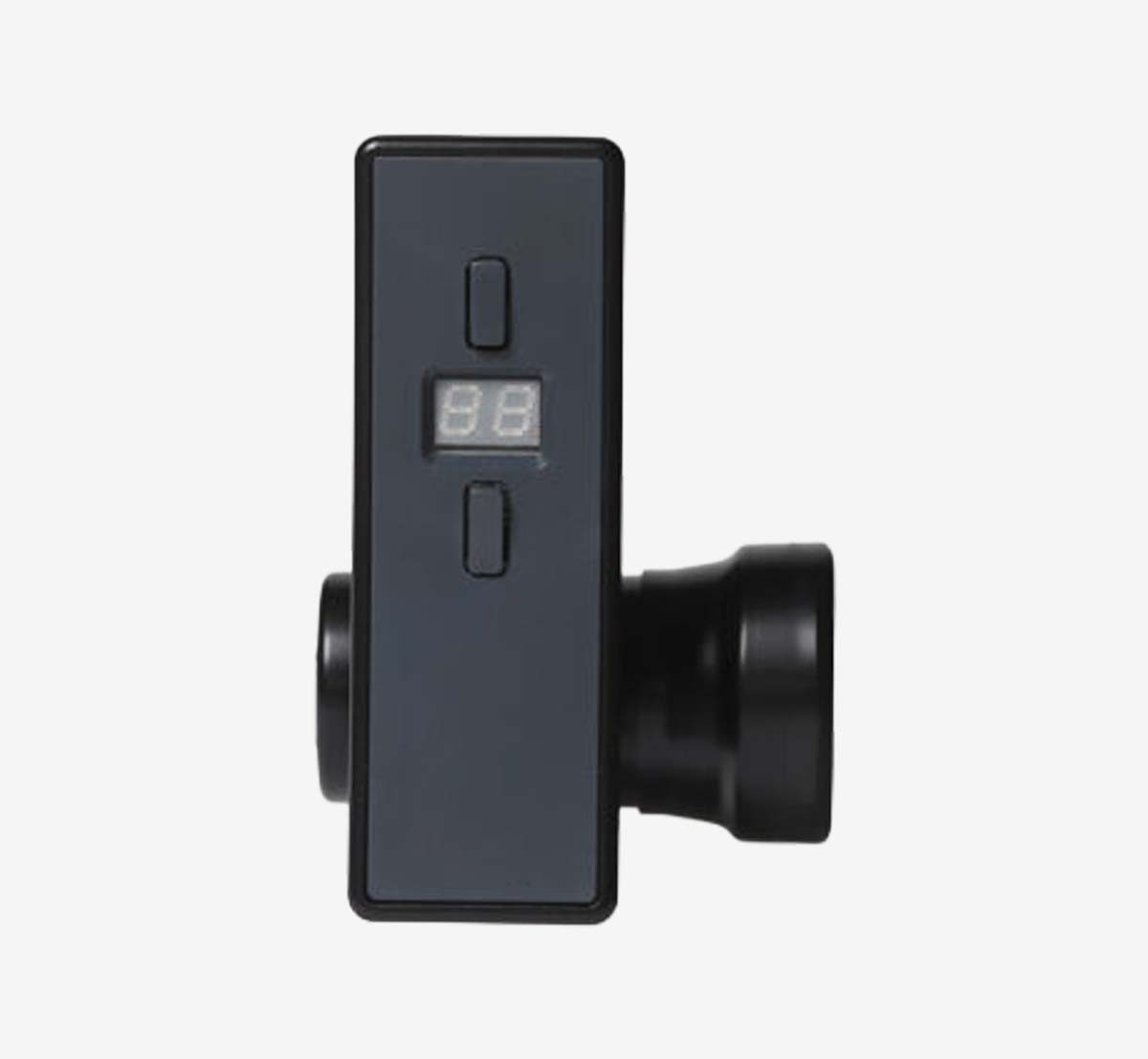

– Detachable controller for easy installation and a built-in ON/OFF switch
– IP54 protection class – high resistance to moisture in the bathroom environment
– Can be installed on the left or right side of the radiator
– Colours to choose from: white, matt black, chrome, graphite, anthracite
– Power to choose from: 300W, 600W, and 900W
Benefits
– Intelligent saving: Features a daily and weekly programmer and ECO/Comfort modes, allowing for automatic heater operation and minimizing energy consumption.
– Comfort and precision: Thanks to the external ambient temperature sensor and smooth adjustment in a wide range (10°C to 65°C), the heating element precisely maintains the set temperature level.
– Fast drying: The Turbo function enables intensive heating for 1, 2, or 3 hours, ideal for quick drying of towels and warming the room.
– Flexible installation: The detachable controller facilitates installation, and the universal design allows for mounting on the left or right side of the radiator.
– Full control: In addition to programming, a built-in ON/OFF switch and a Timer function (maintaining the selected temperature for 1 to 9 hours) are available.
– Aesthetics and colours: Available in five aesthetic cap colours, allowing for an ideal match to any radiator and interior.
Specifications
| Typ | Moc [W] | Zasilanie | Kolor |
|---|---|---|---|
| GHEH 300 | 300 | 230V; 50Hz | biały RAL 9016 błysk, czarny RAL 9005 mat |
| GHEH 600 | 600 | 230V; 50Hz | biały RAL 9016 błysk, czarny RAL 9005 mat |
| GHEH 900 | 900 | 230V; 50Hz | biały RAL 9016 błysk, czarny RAL 9005 mat |
| GHEH 1200 | 1200 | 230V; 50Hz | biały RAL 9016 błysk, czarny RAL 9005 mat |
Available in colors:
Available in white RAL 9016 gloss and black RAL 9005 matt finish.
Supplied as standard with cable and plug.
Option for concealed direct wall connection.
Downloads
Where to buy?
Looking for a showroom with ENIX products? Contact our Customer Service Office.
For cooperation inquiries, email us at
marketing@enix.pl
.
Already our partner? Visit
b2b.enix.pl
Suitable for radiators

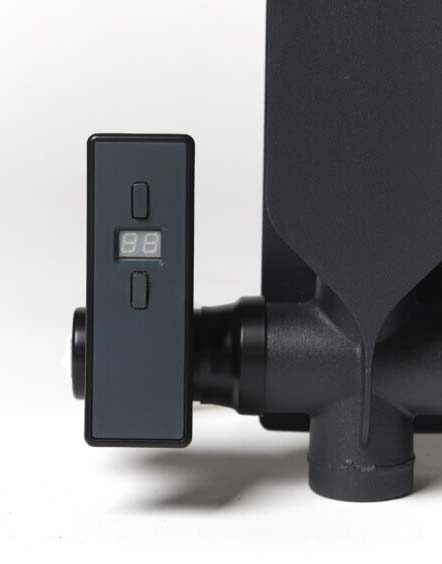

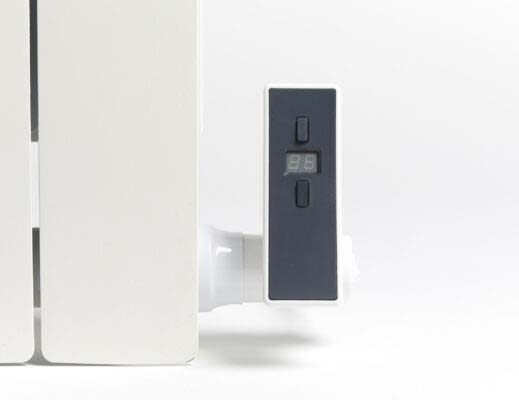

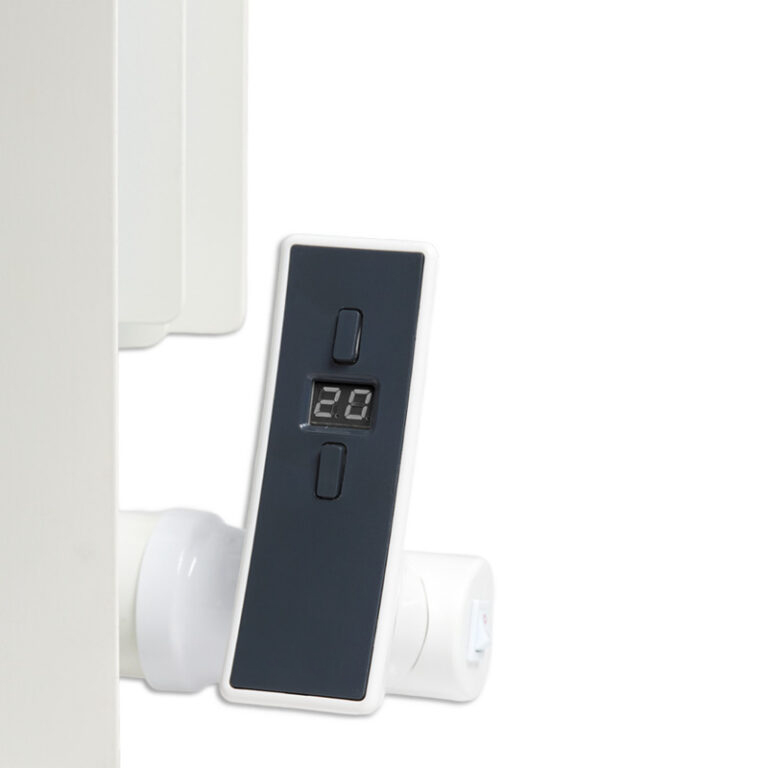

ENIX GHEH horizontal electric heating element
The GHEH electric heating element is an advanced model, designed for discreet horizontal installation in the bottom collector of bathroom, decorative, and room radiators. As a heating element for radiators, GHEH enables quick and independent heating up to 65°C, guaranteeing year-round thermal comfort. The universal design allows for installation on the left or right side (L/R), which, combined with the standard G 1/2″ thread, makes it exceptionally easy to install in any interior.
Precise control and advanced functions
Despite its discreet installation, the ENIX GHEH heating element offers full digital control. It is equipped with a clear LED display and an external ambient temperature sensor, ensuring precise operation. Smooth adjustment in a wide range from 10°C to 65°C allows for perfect adaptation of heating power to needs.
For maximum efficiency, the heating element offers a weekly programmer and operating modes such as Comfort and ECO (energy saving).
Practical functions
The GHEH heating element has a range of practical functions to facilitate daily use:
- Turbo: Intensive heating and drying (1, 2, or 3 hours)
- Timer: Maintaining the set temperature for a specified period (1 to 9 hours)
- Antifreeze: Protection against installation freezing, which is crucial during periods when heating is turned off.
Additionally, the detachable controller facilitates installation and servicing, and the built-in ON/OFF switch provides full control. GHEH heating elements are available in a wide range of wattages, from 300W to 1200W, allowing for a perfect match to any radiator and room.
If you are looking for a different model, discover the
other heating elements
in our offer.
